Precision Insert Molding & Technical Injection Tooling for New Energy Vehicle (NEV) Fluid Systems
As the EV sector demands higher reliability and strict weight reduction, critical automotive components such as fluid line connectors and overmolded fasteners must withstand extreme mechanical stress and thermal cycles. As an experienced technical mold maker in Shanghai, we showcase how our micron-level tooling precision and balanced hot runner engineering support tier-1 suppliers and major NEV OEMs like BYD.
Technical Challenges & Solutions:

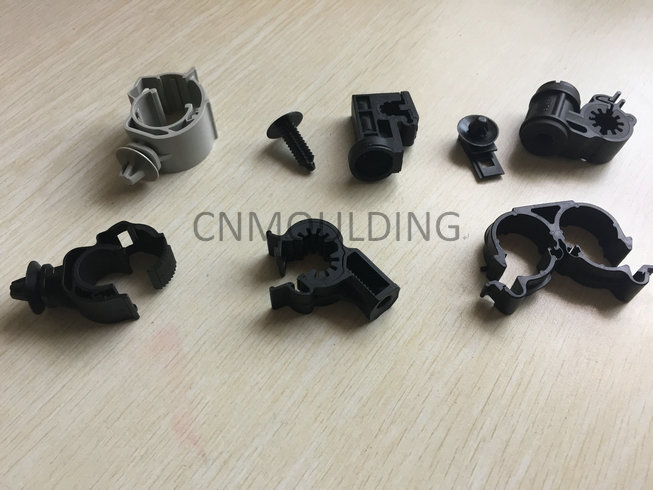

1. Precision Fluid Connectors (EV Cooling/Fuel Line Joints)
The Challenge: These components are typically molded from highly glass-filled materials (e.g., PA66-GF30) which are highly abrasive to mold steel. Moreover, any minor parting line mismatch or flash can cause devastating fluid leakage in high-pressure EV cooling loops.

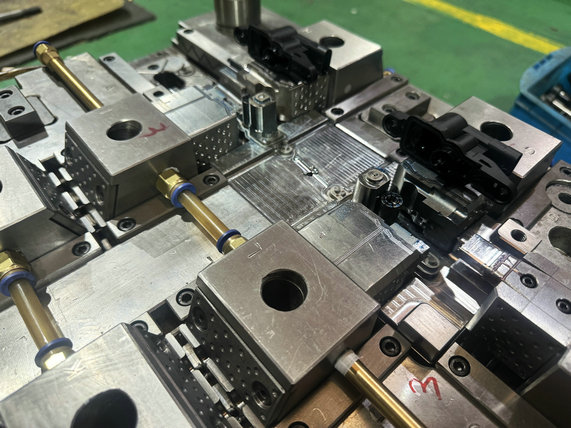

Our Tooling Solution: We utilized premium imported ASSAB S136 / 2344 steel hardened to HRC 48-52 to resist wear. The core and cavity inserts were machined using Makino High-Speed CNC and Sodick EDM to guarantee a micron-level tolerance ($\pm0.005mm$). Advanced Moldflow analysis was performed to position the injection gates perfectly, minimizing weld lines and warp.
2. Advanced Overmolded Fasteners (Metal-to-Plastic Insert Molding)
The Challenge: Ensuring perfect bonding between the metal fasteners and the engineering plastic shell while preventing insert displacement during high-pressure injection molding cycles.
Our Production Solution: Our engineering team designed custom slide mechanisms and automated insert loading fixtures. By strictly controlling the mold’s clamping force and optimizing the hot runner system temperature profile, we eliminated aesthetic defects, achieved zero insert-shift, and guaranteed airtight encapsulation.
Quality Assurance & Manufacturing Standards:
System Certification: Fully compliant with IATF 16949 quality management standards for automotive supply chains.
Inspection Protocol: 100% automated vision inspection alongside Hexagon CMM (Coordinate Measuring Machine) to output complete dimensional reports before shipment.
